تفاصيل المنتج:
شروط الدفع والشحن:
|
| مقاس: | تصميم مدمج وموفر للمساحة | معدل مرض: | حوالي 99 ٪ |
|---|---|---|---|
| قدرة المنتج: | 4500 قطعة/ساعة | لون المنتج: | فضي |
| ضمان: | 1 سنة | طريقة التشغيل: | التحكم في الشاشة اللمس |
| التعبئة: | حالة خشبية | ضغط العمل: | 0.5-0.8mpa |
| نوع التجميع: | كامل التلقائي | طبيعة: | تلقائي |
| دقة: | دقيق | المواد الرئيسية: | الفولاذ المقاوم للصدأ |
| متانة: | طويل الأمد | نسبة الكفاءة: | فوق 95٪ |
| إبراز: | 4500pieces/hour Lotion Pump Assembly Machine,99% Satisfactory Rate Trigger Sprayer Assembly Machine,1 Year Warranty Liquid Sprayer Assembly Machine,99% Satisfactory Rate Trigger Sprayer Assembly Machine,1 Year Warranty Liquid Sprayer Assembly Machine |
||
Features

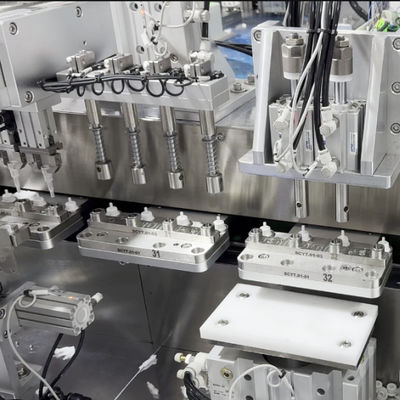

1. Linear sliding rail conveying system will be applied and driven by servo motor to make intermittent movement, fixtures will be in a static state during assembly with precise positioning devices. Each workstation is equipped with a secondary positioning to improve qualified rate of product.
2. Manipulators of each station are independent, simple and easy for daily maintenance.
3. Manipulators are powered by cylinders, shorter time for spare parts change, simpler for debugging and maintenance.
4. The tube insertion process will be silicone oiled automatically, oil storage is 4L.
5. Enclosure for feeding plate can be equipped to reduce noise during production.
6. Each assembly process is followed by detection to ensure there will be no defective products in qualified products.

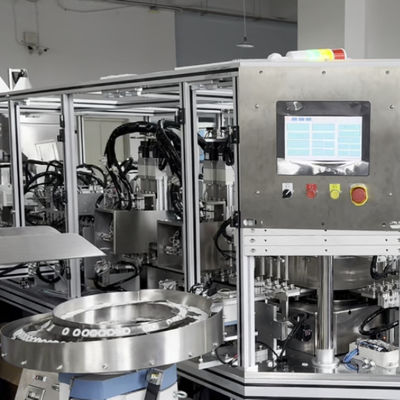

7. Whole equipment controlled by PLC system and touch screen operation.
Properties
|
Applicable products |
lotion pump shampoo pump water sprayer trigger sprayer perfume pump spray nozzle |
|
Production speed |
1500-2500pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 98% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz, 4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 3000kg |
|
Operator |
1set/person |
