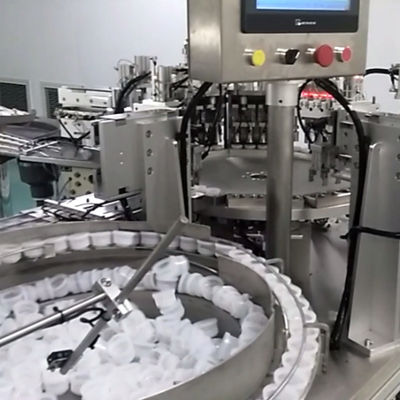

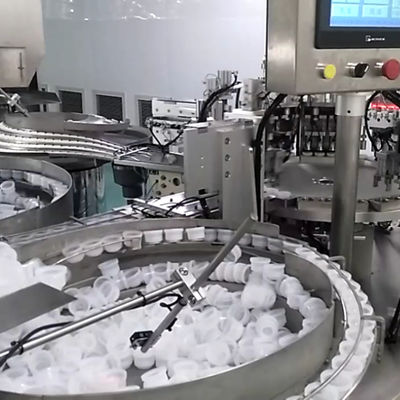

Automatic Euro Cap Assembly Machine with Touch Screen Operation Pneumatic Power and Automatic Inspection for Pharmaceutical Use

Automatic Euro Cap Assembly Machine with Touch Screen Operation Pneumatic Power and Automatic Inspection for Pharmaceutical Use
Automatic Euro Cap Assembly Machine with Touch Screen Operation Pneumatic Power and Automatic Inspection for Pharmaceutical Use Automatic Euro Cap Assembly Machine with Touch Screen Operation Pneumatic Power and Automatic Inspection for Pharmaceutical Use

صورة كبيرة :  Automatic Euro Cap Assembly Machine with Touch Screen Operation Pneumatic Power and Automatic Inspection for Pharmaceutical Use

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: SENCAN
إصدار الشهادات: CE, ISO9001
رقم الموديل: SC-TP-798
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: Negotiate price according to actual situation
تفاصيل التغليف: حالة خشبية
وقت التسليم: 90 يومًا
شروط الدفع: T/T ، L/C.
القدرة على العرض: 3-20 مجموعات
مفصلة وصف المنتج
ضغط الهواء: 0.6-0.8mpa نظام التحكم: PLC
واجهة التشغيل: شاشة تعمل باللمس المشغل: أعزب
حملة رئيسية: محرك سيرفو وقرص الفهرسة استهلاك الطاقة: 1.5kw
نموذج: ماكينة تجميع القبعة بُعد الآلة: 1200 مم × 800 مم × 1500 مم
نطاق ارتفاع الزجاجة: 50-200mm حجم المنتج: كبير
قوة المنتج: 380 فولت القدرة الإنتاجية: 4500-22000 في الساعة
القوة الرئيسية: مؤازرة مركبة مادة: الفولاذ المقاوم للصدأ
إبراز:

Touch Screen Operation Euro Cap Assembly Machine,Automatic Inspection Euro Cap Assembly Machine,Pneumatic Power Euro Cap Assembly Machine

,

Automatic Inspection Euro Cap Assembly Machine

,

Pneumatic Power Euro Cap Assembly Machine

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.



Properties

Applicable products

Loop pull cap, double pull cap, single fold closure, double fold cap, break caps

Production speed

3600-1400pcs/hr (according to customer’s requirement)

Rate of qualified product

Above 99%

Rate of operation rate

Above 95%

Power source

AC380V,50Hz,4kw/hr

Dimension

Actual size varied with different production speed

Weight

About 2300kg

Operator

3sets/2persons,recommend 1set/person
